Lab 12: Statistical error estimation

• Every number that comes out of a Monte Carlo simulation is an average over samples.

• From here on the course runs on such averages: the Ising magnetization from Lab 11, the path-integral averages of next week, and your final projects.

• A Monte Carlo result without an error bar cannot be compared with anything. Today we learn to compute one honestly.

import numpy as np
import matplotlib.pyplot as plt
from matplotlib.animation import FuncAnimation
from numba import njit
from scipy.stats import norm
from IPython.display import HTML

plt.rcParams.update({
    "font.size": 13,
    "figure.figsize": (6.2, 3.5),
    "figure.dpi": 100,
    "figure.constrained_layout.use": True,
})
J = 1.0
KB = 1.0


def show_lattice(axis, lattice, title):
    image = axis.imshow(lattice, cmap="RdYlBu", vmin=-1, vmax=1)
    axis.set(xticks=[], yticks=[])
    axis.set_xlabel(title, fontsize=11)
    return image


def plot_resamples(replicates, estimate, error, xlabel, label):
    fig, ax = plt.subplots()
    ax.hist(replicates, bins=40, density=True, color="#9fc9d3", label=label)
    top = ax.get_ylim()[1]
    ax.errorbar(estimate, 0.9 * top, xerr=error, fmt="o", color="#a54632", capsize=5,
                elinewidth=2, capthick=2, label="estimate ± jackknife error")
    ax.set(xlabel=xlabel, ylabel="Density")
    ax.legend(fontsize=10)
    plt.show()

• We’ll use NumPy for the arrays, Matplotlib for the plots, SciPy for one Gaussian curve, and Numba to compile the loops.

• Two plotting helpers live here as well: show_lattice draws a lattice with blue for \(+1\) and red for \(-1\), with its caption underneath, and plot_resamples draws a histogram of resampled values with an error bar on top.

• Run the cells in order; later cells use the functions we define along the way.

Why this matters

• In Assignment 3 you will compute \(\langle x^2\rangle\) for the harmonic oscillator by path-integral Monte Carlo and compare it with the exact value \(\tfrac12\coth(\beta/2)\).

• Suppose you get \(0.63\pm0.02\) and the exact value is \(0.656\). Agreement, or a bug?

• The answer depends entirely on whether \(\pm0.02\) is right.

• Getting the \(\pm\) right turns out to be harder than the familiar \(s/\sqrt N\), which comes out too small here, often by a lot.

• \(s/\sqrt N\) is for uncorrelated measurements, which was not the case for our Ising example yesterday.

Yesterday’s sampler

• Lab 11’s Metropolis update, compiled with Numba and split into four small functions over the next three slides: the energy change, the accept-or-reject step, one sweep, and the loop that records \(m\) and saves snapshots of the lattice.

• Two reminders:

  • One sweep is \(N^2\) attempted spin flips, one per site on average.

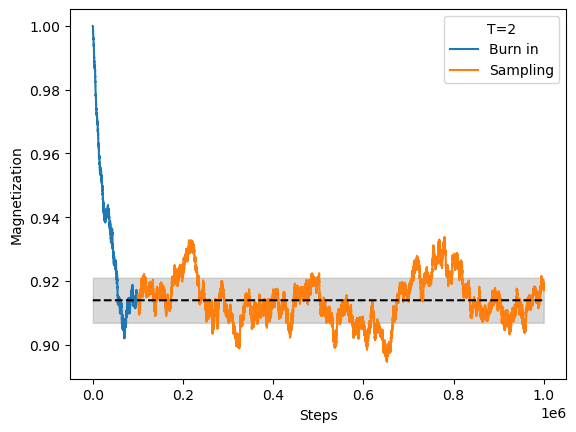

  • Burn-in is the sweeps we throw away at the start, before the lattice has forgotten that it began with every spin up.

• The compiled functions take a distribution: NumPy’s random generator, made from a seed so that a run is reproducible.

• Everything here is from Lab 11; only the packaging is new.

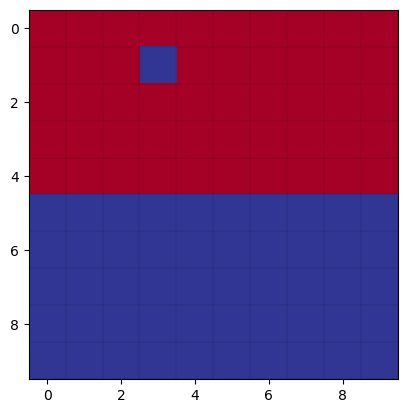

The energy change of one flip

• Flipping the spin at (row, column) changes only its four bonds.

• \(\Delta E = 2J\,\sigma_{ij}\sum_{\mathrm{nbrs}}\sigma\): positive when the spin agrees with most of its neighbors, negative when it disagrees.

• The % lattice_size wraps the neighbor index around the edges: periodic boundaries, as in Lab 11.

@njit
def flip_energy(spins, row, column):
    lattice_size = spins.shape[0]
    neighbors = (spins[(row - 1) % lattice_size, column] + spins[(row + 1) % lattice_size, column]
                 + spins[row, (column - 1) % lattice_size] + spins[row, (column + 1) % lattice_size])
    return 2 * J * spins[row, column] * neighbors

Nothing is flipped here: the function only reports what a flip at (row, column) would cost.

Accept or reject

• Pick a site at random and ask flip_energy what the flip would cost.

• Energy falls or stays the same: flip.

• Energy rises: flip with probability \(e^{-\Delta E/(k_{\mathrm B}T)}\), by comparing a uniform random number from distribution with it.

• A rejected proposal leaves the lattice unchanged but still counts as an attempt.

@njit
def attempt_flip(spins, temperature, distribution):
    lattice_size = spins.shape[0]
    row, column = distribution.integers(0, lattice_size, size=2)
    delta_energy = flip_energy(spins, row, column)
    if delta_energy <= 0 or distribution.random() < np.exp(-delta_energy / (KB * temperature)):
        spins[row, column] *= -1

The or short-circuits, so the uniform random number is drawn only when the energy would rise.

Sweeps and the record of \(m\)

• one_sweep makes \(N^2\) attempts; sites are chosen at random, so some are tried more than once and some not at all.

• ising_sweeps repeats that, records the magnetization per spin \(m\) after every sweep, and saves a snapshot of the whole lattice every record_every sweeps.

• run_ising starts from all spins up, makes the distribution from the seed, and returns the final lattice, the history of \(m\), and the stack of snapshots.

@njit
def one_sweep(spins, temperature, distribution):
    lattice_size = spins.shape[0]
    for _ in range(lattice_size * lattice_size):
        attempt_flip(spins, temperature, distribution)


@njit
def ising_sweeps(spins, temperature, n_sweeps, distribution, record_every):
    lattice_size = spins.shape[0]
    magnetization = np.empty(n_sweeps + 1)
    snapshots = np.empty((n_sweeps // record_every + 1, lattice_size, lattice_size), dtype=np.int64)
    magnetization[0] = spins.mean()
    snapshots[0, :, :] = spins
    for sweep in range(1, n_sweeps + 1):
        one_sweep(spins, temperature, distribution)
        magnetization[sweep] = spins.mean()
        if sweep % record_every == 0:
            snapshots[sweep // record_every, :, :] = spins
    return magnetization, snapshots


def run_ising(temperature, lattice_size, n_sweeps, seed, record_every):
    spins = np.ones((lattice_size, lattice_size), dtype=np.int64)
    distribution = np.random.default_rng(seed)
    magnetization, snapshots = ising_sweeps(spins, temperature, n_sweeps, distribution, record_every)
    return spins, magnetization, snapshots

The first call compiles all four functions, which takes a few seconds; later runs reuse the compiled code. A snapshot is the full \(N\times N\) array of spins, so record_every keeps the memory use small.

A run at \(T = 2.7\)

• A \(24\times24\) lattice, 1,024 sweeps of burn-in, then 16,384 sweeps with \(m\) recorded after each one.

• A snapshot of the lattice every 16 sweeps. Three of them are shown under the trace: the all-up start, the end of burn-in, and the end of the run.

• The trace shows the first 1,500 recorded sweeps.

N_LATTICE, BURNIN, SWEEPS, RECORD_EVERY = 24, 1024, 16_384, 16
T = 2.7
lattice, m_history, snapshots = run_ising(T, N_LATTICE, BURNIN + SWEEPS, seed=142, record_every=RECORD_EVERY)
m_run = m_history[BURNIN + 1:]

fig = plt.figure(figsize=(6.4, 5.2))
layout = fig.add_gridspec(2, 3, height_ratios=(1.15, 1))
trace = fig.add_subplot(layout[0, :])
trace.plot(m_run[:1500], color="#007c91", linewidth=0.9)
trace.set(xlabel="Sweep after burn-in", ylabel="Magnetization per spin m", title=f"T = {T}")
for column, (sweep, name) in enumerate([(0, "start"), (BURNIN, "after burn-in"), (BURNIN + SWEEPS, "end of run")]):
    snapshot = snapshots[sweep // RECORD_EVERY]
    show_lattice(fig.add_subplot(layout[1, column]), snapshot, f"{name}\nm = {snapshot.mean():+.2f}")
plt.show()
print(f"Mean m over {len(m_run):,} sweeps: {m_run.mean():+.4f}")
print(f"Standard deviation of m:      {m_run.std():.4f}")

Mean m over 16,384 sweeps: -0.0011
Standard deviation of m:      0.2038

• The trace wanders: \(m\) stays near one value for tens of sweeps before drifting away. This is the data we want an error bar for.

• The snapshots show what burn-in is for: the all-up start looks nothing like a typical configuration at \(T=2.7\), while the end of burn-in and the end of the run look alike.

Two consecutive sweeps

• Run one more sweep from the final lattice and compare it with the lattice before.

• The outlined sites are the spins that flipped.

before = lattice.copy()
ising_sweeps(lattice, T, 1, np.random.default_rng(7), record_every=1)
changed = np.argwhere(lattice != before)

fig, axes = plt.subplots(1, 2, figsize=(7.2, 3.4))
show_lattice(axes[0], before, f"After sweep t: m = {before.mean():+.3f}")
show_lattice(axes[1], lattice, f"After sweep t + 1: m = {lattice.mean():+.3f}")
for row, column in changed:
    axes[1].add_patch(plt.Rectangle((column - 0.5, row - 0.5), 1, 1, fill=False,
                                    edgecolor="#e0a53a", linewidth=1.5))
plt.show()
print(f"{len(changed)} of {N_LATTICE**2} spins flipped; m changed by {lattice.mean() - before.mean():+.4f}")

113 of 576 spins flipped; m changed by +0.0035

Most of the lattice is unchanged, so the next measurement of \(m\) is nearly a repeat of the last one. Two consecutive measurements carry much less than two measurements’ worth of information.

What an error bar means

• Rerun the simulation with a different seed and the mean comes out slightly different.

• Do it many times and the means pile up in a narrow heap.

• Standard error: the width of that heap, so how far the mean of one run typically lands from the true value.

• Standard deviation \(s\): how far individual values spread within one run. Not the same thing.

• We want the first one, from a single run, because we can’t afford to rerun everything many times.

The question

The run gives 16,384 values of \(m\). The usual error bar on their mean divides the spread by \(\sqrt N\):

\[\operatorname{SE}(\bar m)\stackrel{?}{=}\frac{s}{\sqrt N}.\]

• That formula assumes each measurement is a fresh draw that knows nothing about the one before it.

• Ours are not like that: a measurement is mostly a copy of the last one, because only a few spins flipped in between.

• Measurements that remember each other are correlated.

• The formula counts 16,384 fresh draws when we have far fewer, so it comes out too small.

• How much too small is the subject of this lab.

The plan

Four questions, in order:

1. How long does the memory last? That is the autocorrelation.

2. How many fresh draws is our run worth? That is the effective number of measurements.

3. Can we get the error bar without measuring the memory at all? That is blocking.

4. What about a result that isn’t a plain average? That is the jackknife and the bootstrap.

• We’ll answer each one on a toy model whose right answer we know.

• Then all of it on yesterday’s Ising run. Next week, on the path integral.

Why a toy model?

• To test an error bar we need data whose true mean and true uncertainty are known.

• The Ising run can’t tell us that.

• So we’ll build the simplest model that shares its key feature, memory, and keep the Ising data for the end.

Build a sequence with memory

• Start from independent Gaussian noise \(\epsilon_t\).

• Each new value keeps a fraction \(r\) of the previous value and adds fresh noise:

\[x_t = r\,x_{t-1} + \sqrt{1-r^2}\,\epsilon_t,\qquad \epsilon_t\sim\mathcal N(0,1).\]

• The square root keeps the variance at 1 for every \(r\), and the mean is 0.

• Like the Ising update, the next value depends only on the current one: a Markov chain.

• This is our toy model for the rest of the lab.

The generator

• One line per step: keep a fraction \(r\) of the old value, add fresh noise.

• distribution is the random generator again, made from a seed by the caller; distribution.normal() draws one \(\epsilon_t\).

• The name: statisticians call this rule AR(1), autoregressive of order 1, because each value is regressed on the one before it; stationary because the first value is drawn from the same distribution as all the others.

@njit
def stationary_ar1(n_values, r, distribution):
    x = np.empty(n_values)
    x[0] = distribution.normal()
    for t in range(1, n_values):
        x[t] = r * x[t - 1] + np.sqrt(1 - r**2) * distribution.normal()
    return x

Because the first value already has the right distribution, there is no burn-in to discard. That is the one luxury this toy has over the Ising chain.

Three memories from the same noise

The same seed, so the same noise, with \(r=0\), \(0.5\), and \(0.9\).

fig, axes = plt.subplots(3, 1, figsize=(6.2, 4.4), sharex=True)
for axis, r_value in zip(axes, (0.0, 0.5, 0.9)):
    axis.plot(stationary_ar1(150, r_value, np.random.default_rng(142)), color="#007c91")
    axis.set(ylabel=f"r = {r_value}", ylim=(-3.5, 3.5))
axes[-1].set(xlabel="Measurement index t")
plt.show()

• With \(r=0\) every value is independent.

• With \(r=0.9\) a high value is usually followed by another high value, like the Ising trace.

• All three have the same distribution of values, mean 0 and spread 1, so their histograms look alike. What differs is the order: which values tend to follow which in time.

The sequence for the rest of the lab

• A correlated sequence with \(r=0.9\) and 32,768 values, from seed 142.

N = 32_768
r = 0.9
x = stationary_ar1(N, r, np.random.default_rng(142))
print(f"r = {r}: mean {x.mean():+.3f}, standard deviation {x.std():.3f}")

r = 0.9: mean +0.016, standard deviation 0.983

Mean 0 and spread 1, as designed. Everything that follows is about how far that mean can be trusted.

Same histogram, different order

• Shuffle the sequence: the same 32,768 numbers in a random order.

• Top: the first 200 values, in the original order and shuffled. Middle: the two histograms, identical because the numbers are.

• Bottom: the running mean, the mean of the first \(t\) values, for both orders. running_mean keeps a running total and divides by the count.

@njit
def running_mean(values):
    means = np.empty(len(values))
    total = 0.0
    for t in range(len(values)):
        total += values[t]
        means[t] = total / (t + 1)
    return means

shuffled = np.random.default_rng(1).permutation(x)

with plt.rc_context({"font.size": 9}):
    fig, axes = plt.subplots(3, 1, figsize=(6.6, 3.8))
    axes[0].plot(shuffled[:200], color="#8a97a6", alpha=0.8, label="shuffled")
    axes[0].plot(x[:200], color="#007c91", label="original order")
    axes[0].set(ylabel="x", ylim=(-4, 4), xlabel="t")
    axes[0].legend(fontsize=8, ncol=2, loc="upper right", frameon=False)
    bins = np.linspace(-4, 4, 41)
    axes[1].hist(shuffled, bins=bins, density=True, histtype="step", color="#8a97a6", linewidth=3)
    axes[1].hist(x, bins=bins, density=True, histtype="step", color="#007c91")
    axes[1].set(ylabel="density", xlabel="x")
    axes[2].plot(running_mean(shuffled), color="#8a97a6", alpha=0.8)
    axes[2].plot(running_mean(x), color="#007c91")
    axes[2].axhline(0, color="gray", linewidth=0.8)
    axes[2].set(xscale="log", xlim=(10, N), ylim=(-0.5, 0.5), ylabel="running mean", xlabel="values averaged, t")
    plt.show()

• The histogram cannot tell the two orders apart; the mean of the run can. The shuffled running mean settles near 0 within a few hundred values, while the original wanders for thousands.

• What the histogram threw away is which value follows which: the memory. An honest error bar has to account for it, and the next slides measure it.

Autocorrelation: how long does the memory last?

• Compare each measurement with the one \(k\) steps later; the gap \(k\) is called the lag.

• Their correlation \(\rho(k)\) is near 1 when the later value is almost a repeat and near 0 once the memory is gone.

• Plotted against the lag, \(\rho(k)\) shows how long the memory lasts.

Scatter at two lags

Plot each value against the value \(k\) steps later, for the first 3,000 measurements.

fig, axes = plt.subplots(1, 2, figsize=(7.0, 3.4))
for ax, lag in zip(axes, (1, 20)):
    ax.plot(x[:3000 - lag], x[lag:3000], ".", color="#007c91", alpha=0.25, markersize=4)
    ax.set(title=f"lag {lag}", xlabel="x(t)", ylabel=f"x(t + {lag})", xlim=(-4, 4), ylim=(-4, 4))
    ax.set_aspect("equal")
plt.show()

At lag 1 the points line up along the diagonal: the next value is almost a repeat. At lag 20 the cloud is nearly round: the memory has mostly faded.

Estimate the autocorrelation

\[\rho(k)=\frac{\operatorname{Cov}(x_t,\,x_{t+k})}{\operatorname{Var}(x)}.\]

• \(\rho(k)\) is the exact autocorrelation, a property of the model. For our toy model it is \(\rho(k)=r^k\).

• From one run we can only compute the covariance and the variance of the values we have, so what the code returns is an estimate: \(\approx\rho(k)\), not \(=\rho(k)\).

• The code mirrors the formula: covariance for one lag, variance, and autocorrelation, which divides one by the other for every lag up to max_lag. exact_autocorrelation is just \(r^k\), for the comparison on the next slide.

@njit
def variance(values):
    centered = values - values.mean()
    return (centered**2).mean()


@njit
def covariance(values, lag):
    centered = values - values.mean()
    total = 0.0
    for t in range(len(values) - lag):
        total += centered[t] * centered[t + lag]
    return total / len(values)


@njit
def autocorrelation(values, max_lag):
    variance_of_x = variance(values)
    rho = np.empty(max_lag + 1)
    for lag in range(max_lag + 1):
        rho[lag] = covariance(values, lag) / variance_of_x
    return rho


def exact_autocorrelation(r, lags):
    return r**lags

Subtracting the mean inside covariance and variance matters: without it, a sequence with a nonzero mean would look correlated at every lag. At lag 0 the covariance is the variance, so the estimate is exactly 1 there.

Compare with the exact curve

The estimate from our single run against the exact \(\rho(k)=r^k\). We keep the estimate as autocorr_estimate for the next slides.

lags = np.arange(121)
autocorr_estimate = autocorrelation(x, max_lag=120)
fig, ax = plt.subplots()
ax.plot(lags, autocorr_estimate, color="#007c91", label="estimate from our run")
ax.plot(lags, exact_autocorrelation(r, lags), "--", color="#a54632", label="exact ρ(k) = $r^k$")
ax.axhline(0, color="gray", linewidth=0.8)
ax.set(xlabel="Lag k (measurements)", ylabel="Autocorrelation")
ax.legend()
plt.show()

The estimate follows \(r^k\) closely out to a lag of about 40, then wanders around zero. That noise at large lags is why we’ll cap the sum in the next step.

Count information, not measurements

• If the memory lasts about ten steps, then ten neighboring measurements together are worth about one fresh draw.

• Call that number \(g\): how many measurements it takes to carry one independent piece of information.

• The autocorrelation gives it to us, by adding up how much each later measurement still remembers the current one.

The effective number of measurements

\[g = 1 + 2\sum_{k\ge 1}\rho(k),\qquad N_{\mathrm{eff}}=\frac{N}{g},\qquad \operatorname{SE}(\bar x)\approx\frac{s}{\sqrt{N_{\mathrm{eff}}}}= s\sqrt{\frac{g}{N}}.\]

• The 1: the measurement itself.

• The sum: how many later measurements still echo it.

• The 2: the memory runs both ways; a measurement resembles the ones before it as much as the ones after it.

• The error bar is the usual formula with \(N_{\mathrm{eff}}\), the number of fresh draws, in place of \(N\).

• \(g/2\) is the integrated autocorrelation time \(\tau_{\mathrm{int}}\) from lecture; Assignment 3 asks for it in sweeps.

• For our toy model \(g=(1+r)/(1-r)=19\) at \(r=0.9\). g_from_autocorrelation adds up the estimated \(\rho(k)\) out to a window; the plot shows the sum growing as the window widens.

@njit
def g_from_autocorrelation(autocorr_estimate, window):
    total = 0.0
    for lag in range(1, window + 1):
        total += autocorr_estimate[lag]
    return 1 + 2 * total

windows = np.arange(1, 121)
g_running = np.empty(len(windows))
for i, window in enumerate(windows):
    g_running[i] = g_from_autocorrelation(autocorr_estimate, window)

fig, ax = plt.subplots()
ax.plot(windows, g_running, color="#007c91", label="1 + 2 Σ of the estimated ρ(k), up to the window")
ax.axhline((1 + r) / (1 - r), color="#a54632", linestyle="--", label="exact g = 19")
ax.set(xlabel="Window: largest lag included", ylabel="g")
ax.legend(fontsize=10)
plt.show()

• The sum settles near 19 once the window passes the memory, then wanders as noisy lags are added.

• We’ll use a window of 50: just past where the memory ran out in the previous plot, and before the noise piles up.

• Our 32,768 measurements hold about as much information about the mean as 1,700 independent ones.

An exact reference

• For our toy model the variance of the run mean can be written down exactly for any finite \(N\).

• It is the same \(1+2\sum\rho(k)\) as \(g\), with the exact \(\rho(k)=r^k\) from exact_autocorrelation and a weight \(1-k/N\) because the run has finite length; exact_mean_se does that sum.

• That exact value lets us grade every estimate that follows.

def exact_mean_se(n_values, r):
    lags = np.arange(1, n_values)
    weights = 1 - lags / n_values
    variance_of_mean = (1 + 2 * np.sum(weights * exact_autocorrelation(r, lags))) / n_values
    return np.sqrt(variance_of_mean)

window = 50
g = g_from_autocorrelation(autocorr_estimate, window)
se_independent = np.sqrt(variance(x) / N)
se_corrected = se_independent * np.sqrt(g)
print(f"g from the autocorrelation: {g:.1f}; effective measurements: {N / g:.0f}")
print(f"Mean of the run:            {x.mean():+.4f}")
print(f"Error bar if independent:   {se_independent:.4f}")
print(f"Error bar with g:           {se_corrected:.4f}")
print(f"Exact for our toy model:    {exact_mean_se(N, r):.4f}")

g from the autocorrelation: 18.8; effective measurements: 1747
Mean of the run:            +0.0164
Error bar if independent:   0.0054
Error bar with g:           0.0235
Exact for our toy model:    0.0241

The corrected error bar is about four times the independent one and matches the exact result. A mean that looks like a three-sigma discrepancy from the true value 0 with the independent error bar is less than one sigma away with the corrected one.

Repeat the experiment

• A standard error predicts how much the mean moves from one run to the next: the width of the heap of run means from the start of the lab.

• For our toy model we can afford to build that heap and check directly.

• simulate_runs makes separate runs of our toy model, one after another from the same distribution, and keeps only the mean of each.

@njit
def simulate_runs(n_runs, n_values, r, distribution):
    run_means = np.empty(n_runs)
    for run in range(n_runs):
        run_means[run] = stationary_ar1(n_values, r, distribution).mean()
    return run_means

Only the means come back; the sequences themselves are thrown away. Compiled, the next slide’s two million steps take a fraction of a second.

The heap of run means

• 500 runs of 4,096 values each. The histogram is the heap of their means.

• The two curves are Gaussians with the widths the two error bars predict: \(s/\sqrt N\) if the values were independent, and \(s\sqrt{g/N}\) with \(g=19\).

n_runs, n_values = 500, 4096
run_means = simulate_runs(n_runs, n_values, r, np.random.default_rng(7))

fig, ax = plt.subplots()
ax.hist(run_means, bins=30, density=True, color="#9fc9d3", label="500 run means")
grid = np.linspace(-0.3, 0.3, 300)
ax.plot(grid, norm.pdf(grid, scale=1 / np.sqrt(n_values)), color="#a54632", label="if independent: s/√N")
ax.plot(grid, norm.pdf(grid, scale=np.sqrt(19 / n_values)), color="#007c91", label="with g = 19: s√(g/N)")
ax.set(xlabel="Mean of one run", ylabel="Density", xlim=(-0.3, 0.3))
ax.legend(fontsize=10)
plt.show()

The run means spread as the corrected formula predicts, not as the independent one does. This is what an error bar means: the width of this histogram.

Blocking: average inside blocks first

• Cut the sequence into consecutive blocks and average each one.

• A block mean remembers the previous block only through the few measurements at its edge.

• So once the blocks are much longer than the memory, the block means are nearly fresh draws and the ordinary formula applies to them.

• This is the error bar Assignment 3 asks for.

Block means on the trace

• split_into_blocks cuts a sequence into \(K\) rows of \(B\) values; block_means averages each row.

• The first 1,024 measurements in blocks of 64; each horizontal bar is one block mean.

def split_into_blocks(values, block_length):
    n_blocks = len(values) // block_length
    return values[:n_blocks * block_length].reshape(n_blocks, block_length)


def block_means(values, block_length):
    return split_into_blocks(values, block_length).mean(axis=1)

block_length = 64
segment = x[:1024]
means = block_means(segment, block_length)
fig, ax = plt.subplots()
ax.plot(segment, color="#8a97a6", linewidth=0.8, label="measurements")
ax.step(np.arange(0, 1024, block_length), means, where="post", color="#007c91",
        linewidth=2.5, label=f"block means, B = {block_length}")
ax.set(xlabel="Measurement index t", ylabel="x")
ax.legend(fontsize=10)
plt.show()

The block means still wander, but each one summarizes 64 measurements, three times the memory length, so neighboring block means are nearly independent.

The blocking curve

\[\operatorname{SE}(\bar x)\approx\frac{s(\bar x_1,\ldots,\bar x_K)}{\sqrt K},\qquad K=\frac{N}{B}.\]

• \(B\) is the block length, \(K\) the number of blocks, and \(s(\bar x_1,\ldots,\bar x_K)\) the spread of the \(K\) block means: the square root of their variance.

• blocking_curve repeats this for block lengths from 1 to 1,024; we’ll use it again on the Ising run.

• No autocorrelation function is needed; the block length does the work.

def blocking_curve(values, block_lengths):
    errors = np.empty(len(block_lengths))
    for i, block_length in enumerate(block_lengths):
        means = block_means(values, block_length)
        errors[i] = np.sqrt(variance(means) / len(means))
    return errors

block_lengths = 2 ** np.arange(0, 11)
blocked_errors = blocking_curve(x, block_lengths)

fig, ax = plt.subplots()
ax.semilogx(block_lengths, blocked_errors, "o-", base=2, color="#007c91", label="blocked estimate")
ax.axhline(exact_mean_se(N, r), color="#a54632", linestyle="--", label="exact")
ax.set(xlabel="Block length B", ylabel="Standard error of the mean")
ax.legend()
plt.show()

• At \(B=1\) this is the independent formula.

• The estimate grows as the blocks absorb the memory and levels off near the exact value.

• Blocks of 256 to 1,024 still leave 128 to 32 block means to average; the plateau is where to read off the error bar.

Which route, and how long a block?

• Two routes to the same error bar: measure the memory, with \(g\) from the autocorrelation, or hide it, with blocks.

• Blocking needs no autocorrelation function and no window to choose, so it is the everyday tool. The autocorrelation is how we understand what blocking is doing.

• Either route gives \(\tau_{\mathrm{int}}\): from \(g\) directly, or from the blocking curve, since the plateau divided by the \(B=1\) value, squared, is \(g\).

• How long a block? Longer than the memory, so a few times the lag where the autocorrelation reaches zero. In practice read it off the curve: increase \(B\) until the estimate stops growing, and stop while enough blocks remain.

A result built from two averages

\[V=\overline{x^2}-\bar x^{\,2},\qquad \operatorname{Var}(x)\approx V.\]

• So far we have put error bars on a plain average.

• The variance is different: \(V\) combines two averages of the same data, the mean of \(x^2\) and the square of the mean of \(x\). It is exactly what our variance function computes.

• The Ising susceptibility, \(\chi=\frac{N_s}{T}\left(\langle m^2\rangle-\langle m\rangle^2\right)\), which measures how strongly the magnetization fluctuates, has the same shape, and so does the heat capacity.

• The rest of the lab is about error bars for results like these. The run stays cut into blocks with split_into_blocks, so the memory stays inside each block.

blocks = split_into_blocks(x, 256)
n_blocks, block_length = blocks.shape
variance_estimate = variance(x)
print(f"{n_blocks} blocks of {block_length} measurements")
print(f"Estimated variance: {variance_estimate:.4f} (true value 1)")

128 blocks of 256 measurements
Estimated variance: 0.9653 (true value 1)

• blocks is the run cut into 128 rows of 256 values.

• The estimate is variance of the whole run. Now we need its error bar.

Why not the usual formula?

• For a plain mean, blocking and \(s/\sqrt K\) were enough.

• \(V\) is not a plain mean: it combines two averages, and their errors are linked because both come from the same data.

• Pushing two error bars through the formula is messy, and it only gets worse for more complicated results.

• So we won’t derive a formula. We’ll make many slightly different versions of the data set, compute \(V\) on each, and watch how much the answer moves.

• The jackknife and the bootstrap are two recipes for making those versions.

• Both work on the blocks from the last section, so the memory stays inside each block.

Jackknife: leave one block out

• Drop one block, recompute \(V\) from the rest, and repeat for every block.

• The \(K\) recomputed values, called replicates, differ only slightly, because each one still uses almost all the data.

The jackknife function

\[s_J^{2}=(K-1)\,\operatorname{Var}\bigl(V_{(-1)},\ldots,V_{(-K)}\bigr).\]

• \(V_{(-b)}\) is the replicate with block \(b\) left out, and \(\operatorname{Var}\) of the replicates is the plain variance of those \(K\) numbers: our variance function again.

• leave_one_out drops one block and joins the rest back into one run; jackknife applies the statistic to each of those runs.

• Leaving out one block of \(K\) barely changes the answer, so the replicates huddle together.

• The factor \(K-1\) scales that huddle up to the spread the answer would have across independent runs.

def leave_one_out(blocks, block):
    return np.concatenate(np.delete(blocks, block, axis=0))


def jackknife(blocks, statistic):
    n_blocks = len(blocks)
    replicates = np.empty(n_blocks)
    for block in range(n_blocks):
        replicates[block] = statistic(leave_one_out(blocks, block))
    error = np.sqrt((n_blocks - 1) * variance(replicates))
    return statistic(np.concatenate(blocks)), error, replicates

np.delete drops row \(b\) of the block table and np.concatenate joins the remaining \(K-1\) rows back into one run for the statistic; the loop repeats for every block.

The jackknife replicates

The \(K=128\) replicates of the variance, each with one block removed.

estimate, se_jackknife, replicates = jackknife(blocks, variance)
print(f"Variance = {estimate:.4f} ± {se_jackknife:.4f} (block jackknife)")
fig, ax = plt.subplots()
ax.plot(replicates, "o", color="#007c91", markersize=4, label="leave-one-block-out replicates")
ax.axhline(estimate, color="#a54632", linestyle="--", label="full-sample estimate")
ax.set(xlabel="Left-out block b", ylabel="Variance estimate")
ax.legend(fontsize=10)
plt.show()

Variance = 0.9653 ± 0.0235 (block jackknife)

The replicates sit within about \(0.01\) of the estimate, yet the error bar is \(0.024\): the \(K-1\) factor does that stretching.

Bootstrap: draw blocks with replacement

• Draw \(K\) blocks at random with replacement: some appear twice, some not at all.

• Recompute \(V\), repeat two thousand times, and take the spread of the replicates.

The bootstrap function

• resample_blocks draws \(K\) block numbers with replacement and joins those blocks back into one run, repeats included.

• Drawing blocks rather than single measurements keeps the memory inside each block.

def resample_blocks(blocks, distribution):
    chosen = distribution.integers(0, len(blocks), size=len(blocks))
    return np.concatenate(blocks[chosen])


def bootstrap(blocks, statistic, n_resamples, seed):
    distribution = np.random.default_rng(seed)
    estimates = np.empty(n_resamples)
    for resample in range(n_resamples):
        estimates[resample] = statistic(resample_blocks(blocks, distribution))
    return estimates

distribution.integers(0, K, size=K) draws the block numbers; blocks[chosen] picks those rows, and np.concatenate joins them into one resampled run.

The bootstrap distribution

• Two thousand resamples of the 128 blocks.

• plot_resamples, from the setup cell, draws the histogram of the replicates and puts the jackknife result on top as an actual error bar.

bootstrap_values = bootstrap(blocks, variance, n_resamples=2000, seed=314)
se_bootstrap = np.sqrt(variance(bootstrap_values))
print(f"Variance = {variance_estimate:.4f} ± {se_bootstrap:.4f} (block bootstrap)")
plot_resamples(bootstrap_values, variance_estimate, se_jackknife,
               "Resampled variance estimate", "2000 bootstrap replicates")

Variance = 0.9653 ± 0.0233 (block bootstrap)

The two methods agree: the width of the bootstrap histogram matches the jackknife error bar drawn on top of it. The jackknife is deterministic and cheap; the bootstrap also shows the shape of the uncertainty.

Why we resample blocks

• Resampling single measurements shuffles them, which removes the memory that makes the mean uncertain.

• The resampled sets look more independent than the run, and the replicates spread too little.

single_values = bootstrap(split_into_blocks(x, 1), variance, n_resamples=400, seed=2718)
print(f"Error bar from single measurements: {np.sqrt(variance(single_values)):.4f}")
print(f"Error bar from blocks of {block_length}:       {se_bootstrap:.4f}")
fig, ax = plt.subplots()
ax.hist(single_values, bins=30, density=True, color="#e0b35a", alpha=0.85, label="resample single measurements")
ax.hist(bootstrap_values, bins=40, density=True, color="#9fc9d3", alpha=0.85, label=f"resample blocks of {block_length}")
ax.set(xlabel="Resampled variance estimate", ylabel="Density")
ax.legend(fontsize=10)
plt.show()

Error bar from single measurements: 0.0075
Error bar from blocks of 256:       0.0233

The single-measurement bootstrap is three times too narrow. Blocks of 256 keep the memory and recover the full width.

Back to the Ising run

• Now the same tools on yesterday’s magnetization.

• First question: how long is its memory, and how does that change with temperature?

• Three runs of 4,096 sweeps after 512 sweeps of burn-in, at \(T=3\), \(2.7\), and \(2.5\), with a snapshot of the lattice every 64 sweeps for the next slide.

temperatures = (3.0, 2.7, 2.5)
snapshot_every = 64
snapshot_runs = {}
fig, ax = plt.subplots()
for temperature, color in zip(temperatures, ("#007c91", "#e0a53a", "#a54632")):
    final, m_history_at_T, snapshots_at_T = run_ising(temperature, N_LATTICE, 512 + 4096, seed=142,
                                                 record_every=snapshot_every)
    snapshot_runs[temperature] = snapshots_at_T
    ax.plot(autocorrelation(m_history_at_T[513:], 300), color=color, label=f"T = {temperature}")
ax.axhline(0, color="gray", linewidth=0.8)
ax.set(xlabel="Lag (sweeps)", ylabel="Autocorrelation of m")
ax.legend()
plt.show()

• At \(T=3\) the memory lasts a few dozen sweeps.

• At \(T=2.5\) it lasts hundreds, and a run of 4,096 sweeps contains only a handful of independent configurations.

• This is critical slowing down: the closer the temperature is to the transition, the longer the chain takes to forget where it was, so each sweep adds less new information.

• It is why Assignment 3 asks about run length near \(T_{\mathrm c}\).

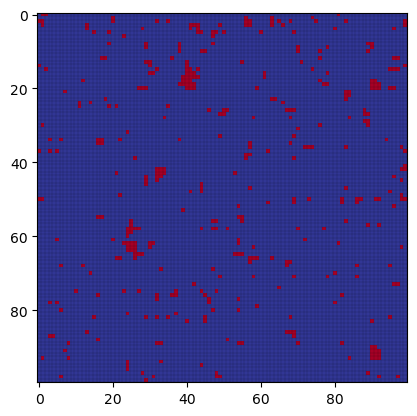

The configurations behind the curves

• The saved snapshots of those three runs, one every 64 sweeps, played as an animation from the all-up start.

• draw_frame swaps the snapshot for one frame into each of the three images.

• Press play. The last frame is the final lattice of each run.

fig, axes = plt.subplots(1, 3, figsize=(6.6, 2.6))
images = [show_lattice(axis, snapshot_runs[temperature][0], f"T = {temperature:g}")
          for axis, temperature in zip(axes, temperatures)]
n_frames = len(snapshot_runs[temperatures[0]])


def draw_frame(frame):
    for image, temperature in zip(images, temperatures):
        image.set_data(snapshot_runs[temperature][frame])
    fig.suptitle(f"Sweep {frame * snapshot_every}", fontsize=11)
    return images


animation = FuncAnimation(fig, draw_frame, frames=n_frames, interval=120)
plt.close(fig)
HTML(animation.to_jshtml())

Once Loop Reflect

Larger aligned patches take longer to rearrange one flip at a time, and the memory of \(m\) grows with them. Watch the \(T=2.5\) run keep its large patches for hundreds of sweeps while \(T=3\) reshuffles within a few.

Block the magnetization

• The same blocking_curve as before, now on \(m\) at \(T=2.7\) over the 16,384 recorded sweeps.

• Block lengths from 1 to 2,048 sweeps.

block_lengths = 2 ** np.arange(0, 12)
blocked_errors = blocking_curve(m_run, block_lengths)

fig, ax = plt.subplots()
ax.semilogx(block_lengths, blocked_errors, "o-", base=2, color="#007c91")
ax.set(xlabel="Block length B (sweeps)", ylabel="Standard error of the mean m",
       title=f"T = {T}, {len(m_run):,} sweeps")
plt.show()
print(f"Mean m = {m_run.mean():+.4f} ± {blocked_errors[9]:.4f} (blocks of {block_lengths[9]} sweeps)")
print(f"Error bar if independent: {np.sqrt(variance(m_run) / len(m_run)):.4f}")

Mean m = -0.0011 ± 0.0114 (blocks of 512 sweeps)
Error bar if independent: 0.0016

The error bar levels off once the blocks are a few hundred sweeps long, at seven times the independent value. This is exactly the blocking error bar Assignment 3 asks for, there on \(\langle x^2\rangle\) of a path.

The susceptibility with an error bar

• The susceptibility per spin, \(\chi=\frac{N_s}{T}\left(\langle m^2\rangle-\langle m\rangle^2\right)\), is our two-average statistic: variance of \(m\) with a prefactor.

• Cut the run into 32 blocks of 512 sweeps and hand susceptibility to the jackknife and the bootstrap.

• Same plot_resamples picture as for the variance.

N_SPINS = N_LATTICE**2

def susceptibility(values):
    return N_SPINS / T * variance(values)

m_blocks = split_into_blocks(m_run, 512)
chi, chi_jackknife, _ = jackknife(m_blocks, susceptibility)
chi_bootstrap = bootstrap(m_blocks, susceptibility, n_resamples=2000, seed=11)
print(f"{len(m_blocks)} blocks of 512 sweeps at T = {T}")
print(f"χ = {chi:.2f} ± {chi_jackknife:.2f} (jackknife)")
print(f"χ = {chi:.2f} ± {np.sqrt(variance(chi_bootstrap)):.2f} (bootstrap)")
plot_resamples(chi_bootstrap, chi, chi_jackknife, "Susceptibility per spin χ", "bootstrap replicates")

32 blocks of 512 sweeps at T = 2.7
χ = 8.86 ± 0.57 (jackknife)
χ = 8.86 ± 0.56 (bootstrap)

Thirty-two blocks are enough for a six-percent error bar, and the two methods agree. The same three lines give an error bar for any quantity computed from a run.

Where you’ll use this

• Assignment 3, Ising part: \(m\) against temperature with an error bar or band at each \(T\), from blocked block means, and a run length chosen after looking at the autocorrelation near \(T_{\mathrm c}\).

• Assignment 3, path-integral part: the time series of \(\frac1N\sum_i x_i^2\), its autocorrelation, \(\tau_{\mathrm{int}}\) in sweeps, and \(\langle x^2\rangle\) with a blocking error bar next to the naive one, compared with the exact \(\tfrac12\coth(\beta/2)\).

• Final projects: every Monte Carlo error bar must account for autocorrelation, by blocking or by \(\tau_{\mathrm{int}}\).

The exact result is the test of your simulation. The error bar decides whether you passed it.

From one run to an honest error bar

• We measured the memory of a sequence with its autocorrelation and counted its information as \(N/g\).

• Blocking turned correlated measurements into nearly independent units.

• The jackknife and bootstrap put error bars on a result built from two averages.

• For any Monte Carlo run: inspect the trace and its autocorrelation, choose a block length past the memory, resample blocks, and report the estimate with its error, the run length, and the block length you used.

References

• Charles Geyer: MCMC and batch means.

• Weigel and Janke: Error estimation and reduction with cross correlations, especially the jackknife treatment of correlated estimates.

• Cosma Shalizi: Bootstrap.

• Anders Sandvik: Monte Carlo methods, for fluctuation observables in spin simulations.
